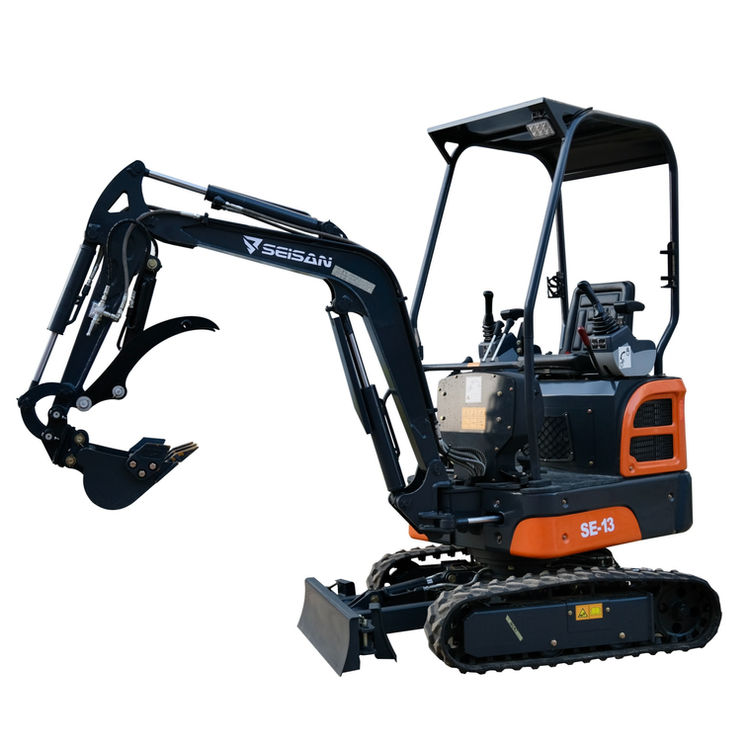

SE-13 Mini Excavator 2,756lbs, Kubota /Yanmar Engine
DIESEL
Tough and compact, the SE-13 excels in construction. Built for durability, its robust design handles any task. With a minimum width of 2'9", it navigates tight spaces effortlessly—your go-to for strength and versatility on the job site.
15.1 HP
Power
2,866lbs
Operating Weight
Featuring
Kubota D722 13.8HP or Yanmar 3NTV74F 15.1HP Diesel engine
Japanese Shimadzu dual-stage pump
In-track drivie motor. Optional two speed walking available
Pattern Switch function
True Hydraulic pilot control. Optional mechanical control available
Solid Cast Iron counterweight
Boom Swing Function and retractable chassis
Manganese Strengthen Steel
FOPS & ROPS certified Canopy
Standard quick coupler and hydraulic thumb
Glow plug
Operating Weight | 2,866lbs (1.3t) |
Engine | Kubota D77 / Yanmar 3TNY74F |
Rated Power | 13.8HP (10.3kW) @2,200rpm / 15.1HP (11.2kW) @ 2,400rpm |
Hydraulic Flow Rate | 5.1GPM (21.6L/min) /6.21GPM (23.5L/min) |
Max. Bucket Digging Force | 2,743lbf (12.2kN) |
Product's Full Specifications
Operating Weight
2,866lbs (1.3t)
Backet Capacity
0.88 cubic feet (0.025m³)
Engine
Kubota D77 / Yanmar 3TNY74F
Rated Power
13.8HP (10.3kW) @2,200rpm / 15.1HP (11.2kW) @ 2,400rpm
Operating Pressure
2,320PSI (16MPa) / 2547PSI (17.6MPa)
Hydraulic Flow Rate
5.1GPM (21.6L/min) /6.21GPM (23.5L/min)
Max. Bucket Digging Force
2,743lbf (12.2kN)
Max. Arm Digging Force
1.461lbf (6.6kN)
Traveling Speed
1.4MPH (2.3km/h)
Max. Grade Ability
30°
Ground Pressure
5.1PSI (35kPa)
Boom Swing Angle (L/R)
62°/42°
Max. Digging Height
8'8" (2,637mm)
Max. Dumping Height
7'1" (2,170mm)
Max. Digging Depth Max. Digging Depth With Dozer Blade
4'11" (1,486mm) 5'7" (1,700mm)
Max. Digging Radius
10'10" (3,300mm)
Max. Ground Level Digging Distance
10'1" (3,072mm)
Min. Turning Radius
4'8" (1,425mm)
Max. Depth of Dozer Blade From The Ground
6'7" (170mm)
Max. Height of Dozer Blade From The Ground
7'3" (185mm)
Max. Length
9'2" (2,780mm)
Max. Height
7'1" (2,150mm)
Max. Width With Track Extension
3'4" (1,050mm)
Max. Width With Track Extension
2'9" (830mm)
Track Width
7'1" (180mm)
Track Length
3'11" (1,195mm))
Wheelbase
2'9" (845mm)
Track Contraction Width
3'5" (830mm)
Track Extension Width
3'5" (1,030mm)
Tail Turning Radius
2'10" (883mm)
Platform Height From The Ground
1'5" (430mm)
Ground Clearance
5.9" (150mm)
Bulldozer Height
8.7" (220mm)
.png)
SE-13 - the all-in-one solution for contractors in urban areas. With a pattern switch, two-speed walking, retractable chassis, and boom swing, it's equipped for every task. Adjustable from 2'9" to 3'4", it navigates tight spaces with stability. Constructed with robust Manganese-strengthened steel thicker than any competitors, a solid cast iron counterweight, and premium components, the SE-13 guarantees unmatched durability and long-lasting performance. Make the wise choice for your projects with the SE-13.
Operating Weight
2,866lbs (1.3t)
Engine
Kubota D77 / Yanmar 3TNY74F
Rated Power
13.8HP (10.3kW) @2,200rpm / 15.1HP (11.2kW) @ 2,400rpm
Hydraulic Flow Rate
5.1GPM (21.6L/min) /6.21GPM (23.5L/min)
Max. Bucket Digging Force
2,743lbf (12.2kN)
